Electrical design with elMaster

elMaster is a CAD application for electrical and instrumentation design. With elMaster users can create and update diagrams and drawings such as circuit diagrams and electrical enclosure layouts. elMaster has network support for symbol library in order to share symbols in larger project groups. elMaster also has a built-in symbol administration with which users can create and administrate symbol libraries.

The program is easy to use and assist the users during the design process. Features such as automatically break-up and mending of connection lines when symbols are inserted and deleted also when the whole parts of diagram are copied, moved or deleted.

There is also support for generation of apparatus lists, wire/cable lists, BOM-lists, I/O lists, table of content and so on.
The CAD environment is directly connected to the design database where objects and connections are automatically created in pace with the design.

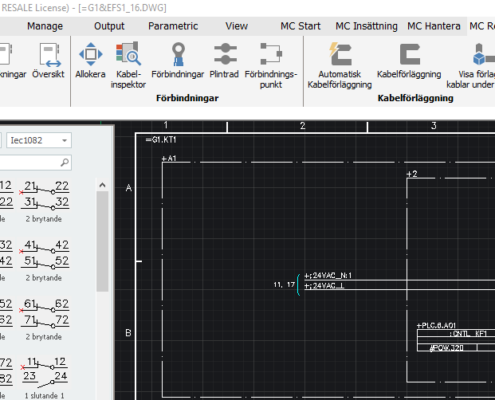

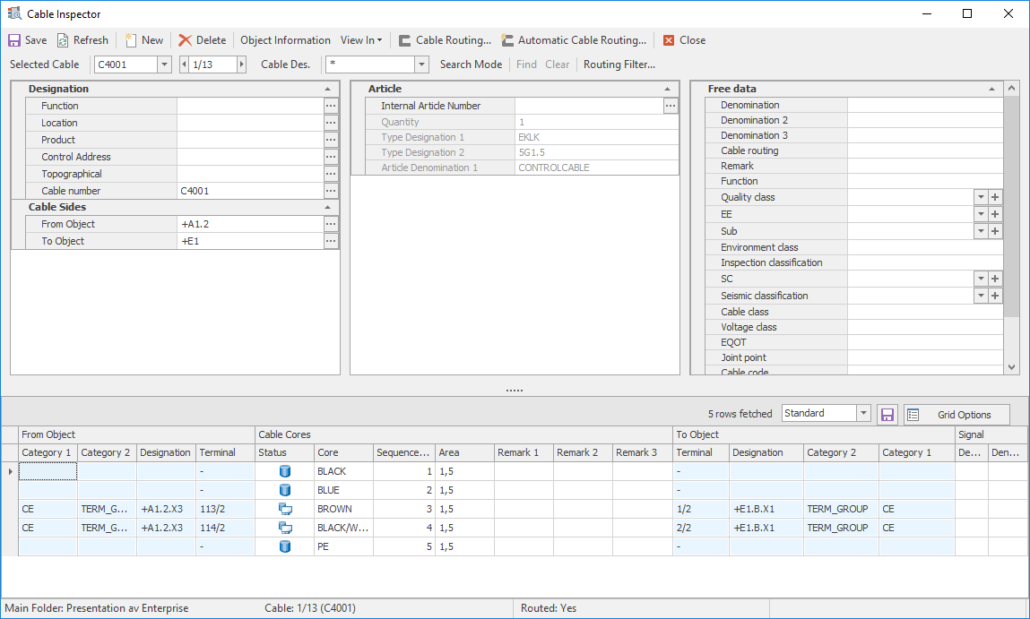

CABLE AND CONNECTION MANAGEMENT

generating cabinet connections and external cables rapidly

COPY STRUCTURE

Advance copy functions

INTUITIVE APPLICATION

Fast and user-friendly functions

Analyze an electrical point™ for better overview

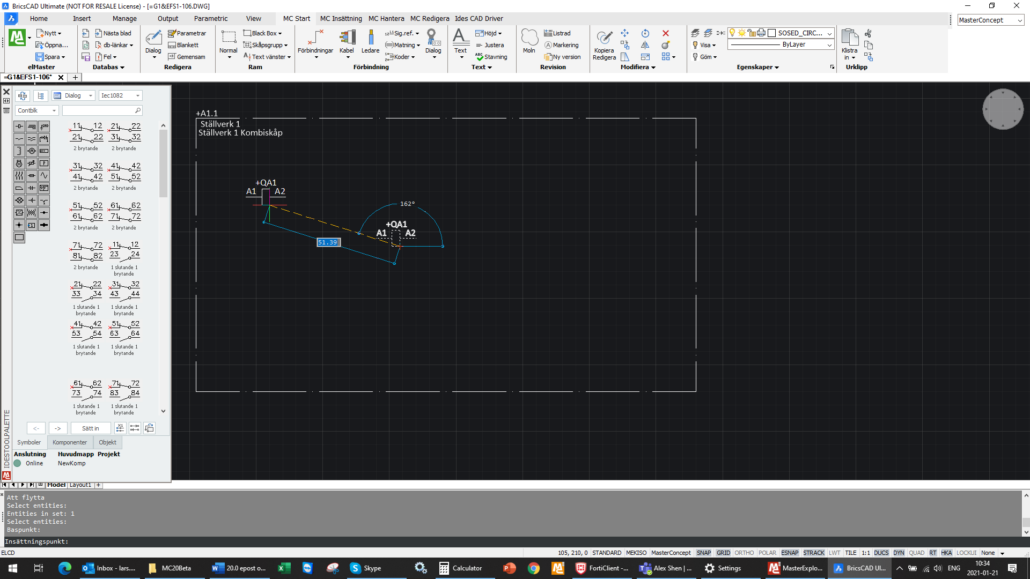

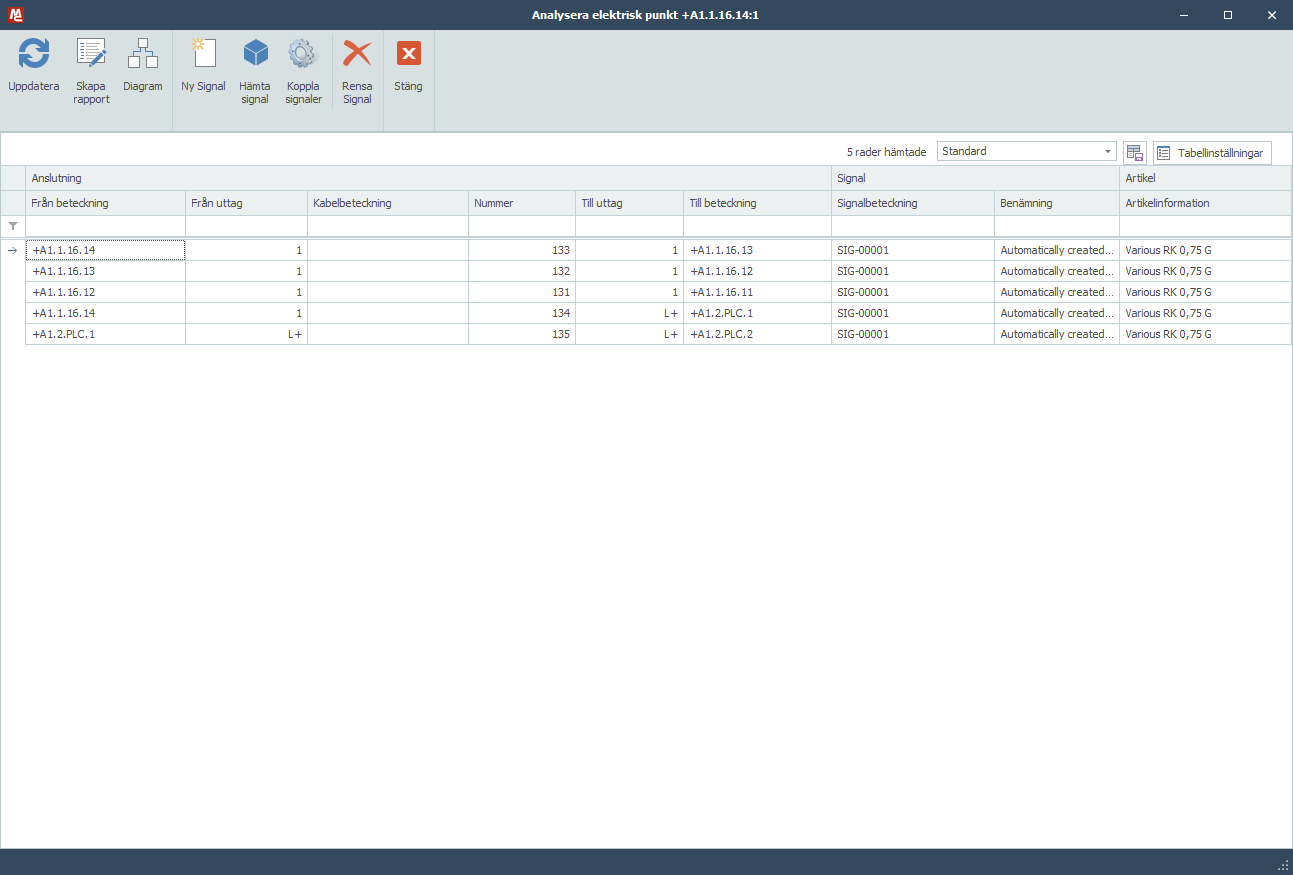

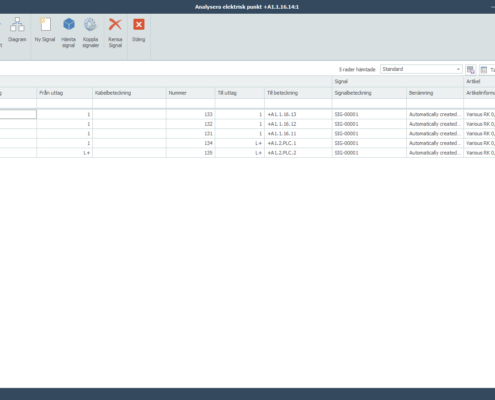

The connection handling in elMaster has a new feature where a smart analyze can be done for an electrical point. An electrical point can be an electrical signal connected over junction boxes or a signal in a cross-connection system. The analyze follows the signal over the termination point to the other side and through the next physical connection/cable and further on to the consumer equipment.

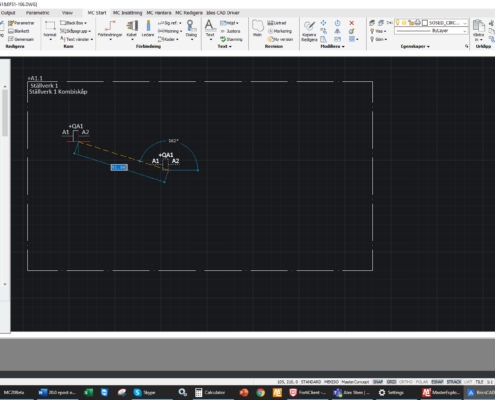

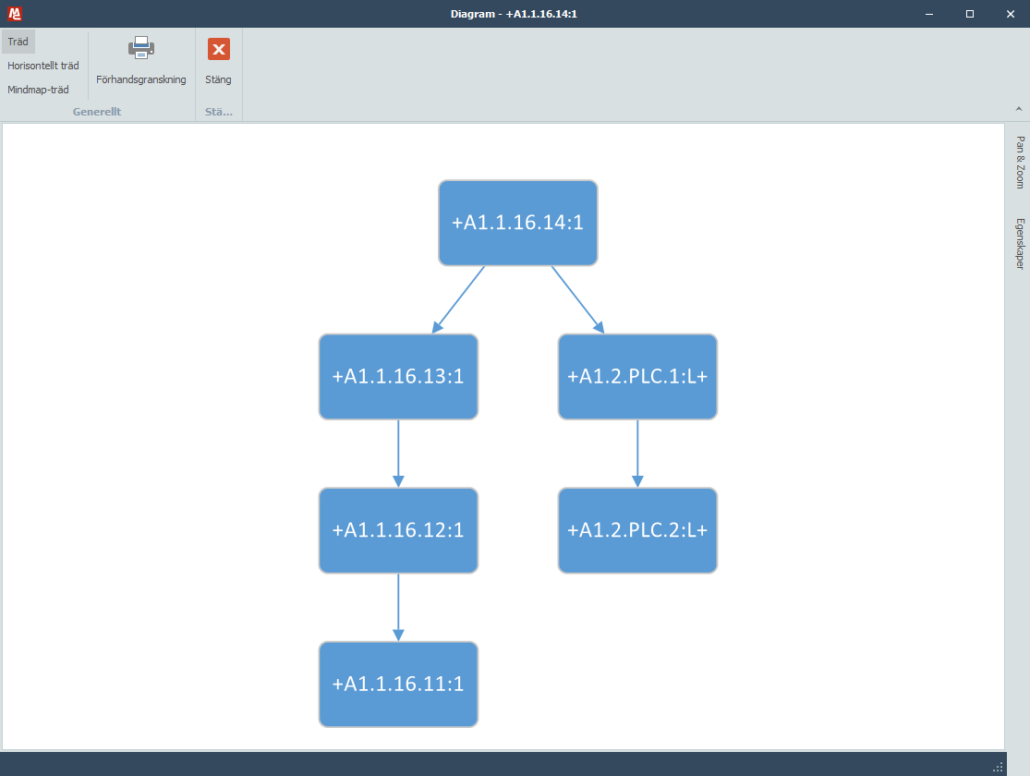

Follow the signal from an instrument all the way to IO card. A feature to be used when looking for problems such electrical disturbances.

Analyzes within a power distribution for instrumentation etc will show affected equipment if the source is switched off or is broken.

The signal can automatically be created, and the result is a faster distinguishing of possible sources of problems.

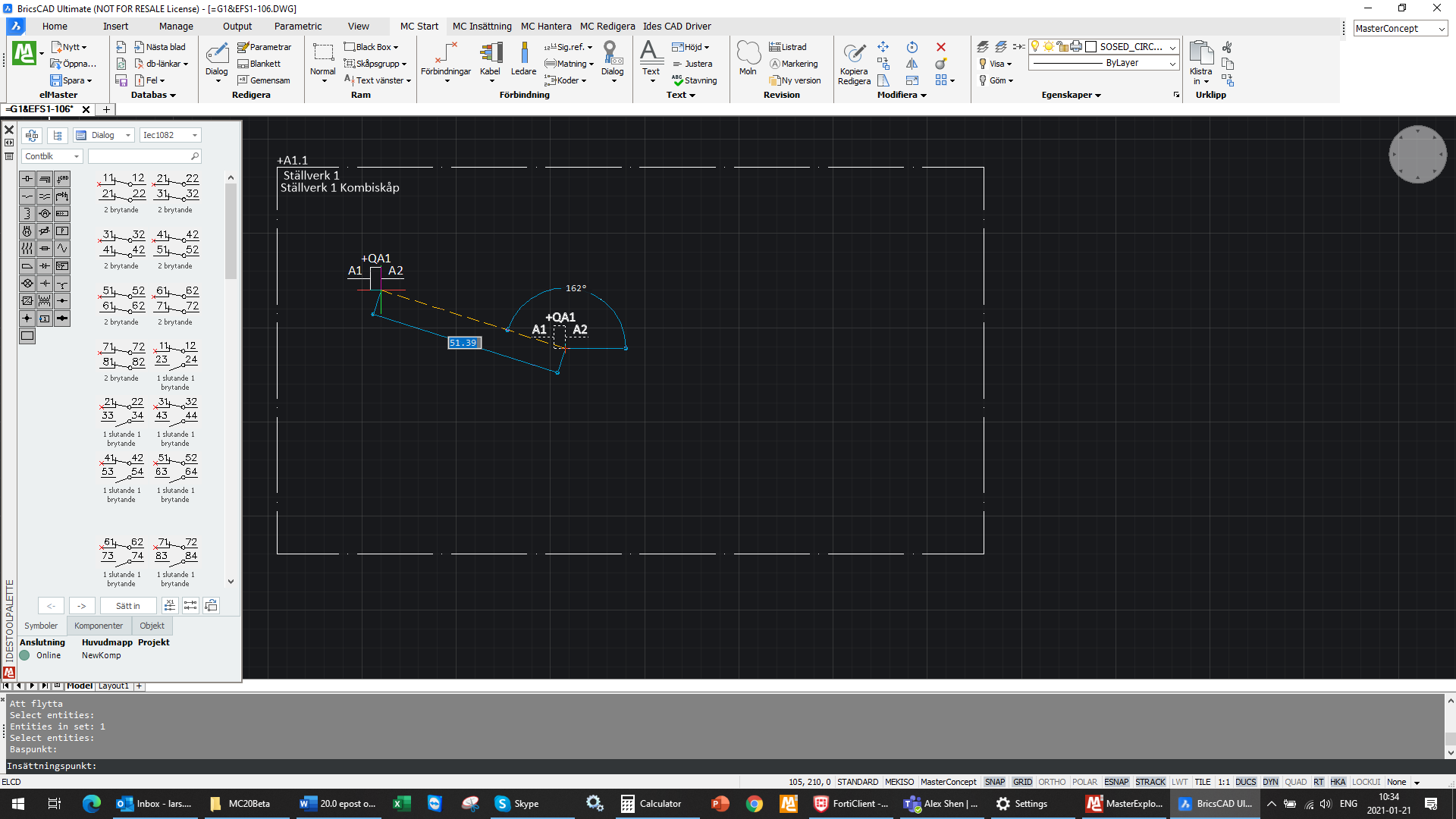

Online connection

One and the same object can be represented by several CAD documents in a electrical plant. Documents show thus different plant aspects. In elMaster, the drawing environment is connected together with database in Master explorer. This makes efficiency when users change data. Drawing, apparatus, cables etc. will be saved and updated to database when drawing. Changes on reference designations are directly saved to database. With elMaster you can create instrument loops with related I/O management and print out IO lists. Support for traceability and audit management gives you a system with maximum power and safety.

SYMBOL MANAGEMENT

Create standard and systematics within company with global symbol management

INTUITIVE USER INTERFACE

A CAD application that offers an overview for all functions

EQUIPMENT LIST

Dynamic apparatus and equipment list for Word, Excel and report generation

MODERN ELECTRIC DESIGN

Electric design that is based on IEC standards

CABLE AND WIRING GENERATOR

Powerful Cable and Wiring generator

PROVEN MULTI-USER ENVIRONMENT

Electrical design developed for multiple users

elMaster

Become 100% effective

Cable routing

The cable routing is now developed with support for Autodesk Revit. Master concept reads segment lengths and nodes directly from Revit. Ides CAD driver streamlines the work when BIM / construction organizations use full-featured 3D models during construction and the project phase.

More information
